AWS NAT 实例

Nov 12, 2020 2020-11-12T21:31:00+08:00 by adream307
7 min

创建 VPC

vpc 地址范围为 192.168.0.0/16

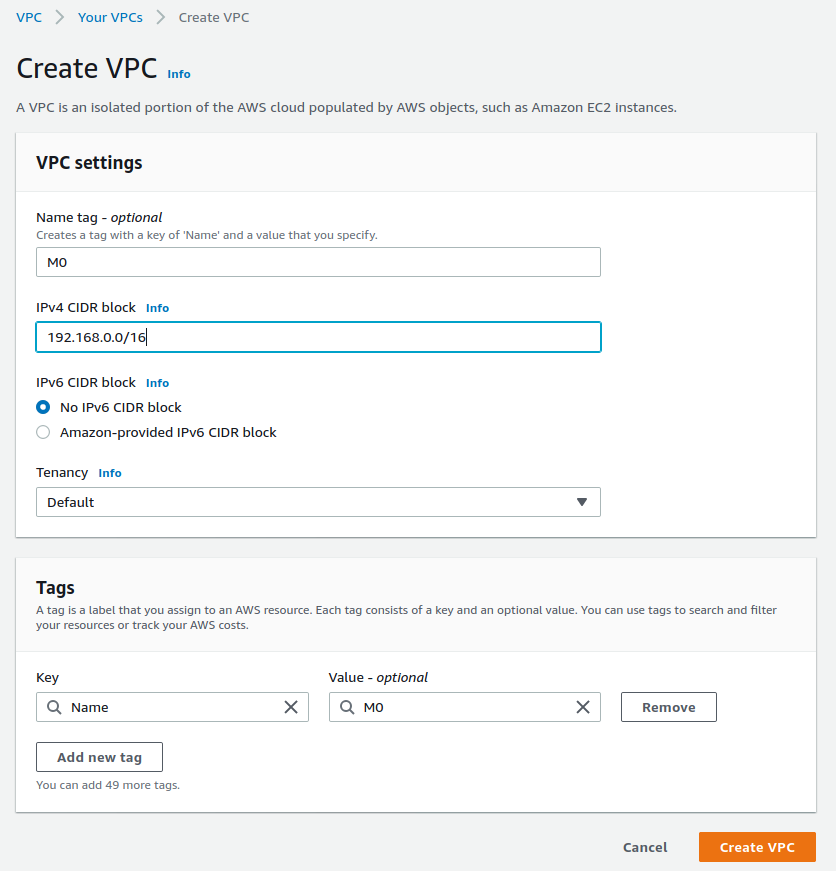

create vpc

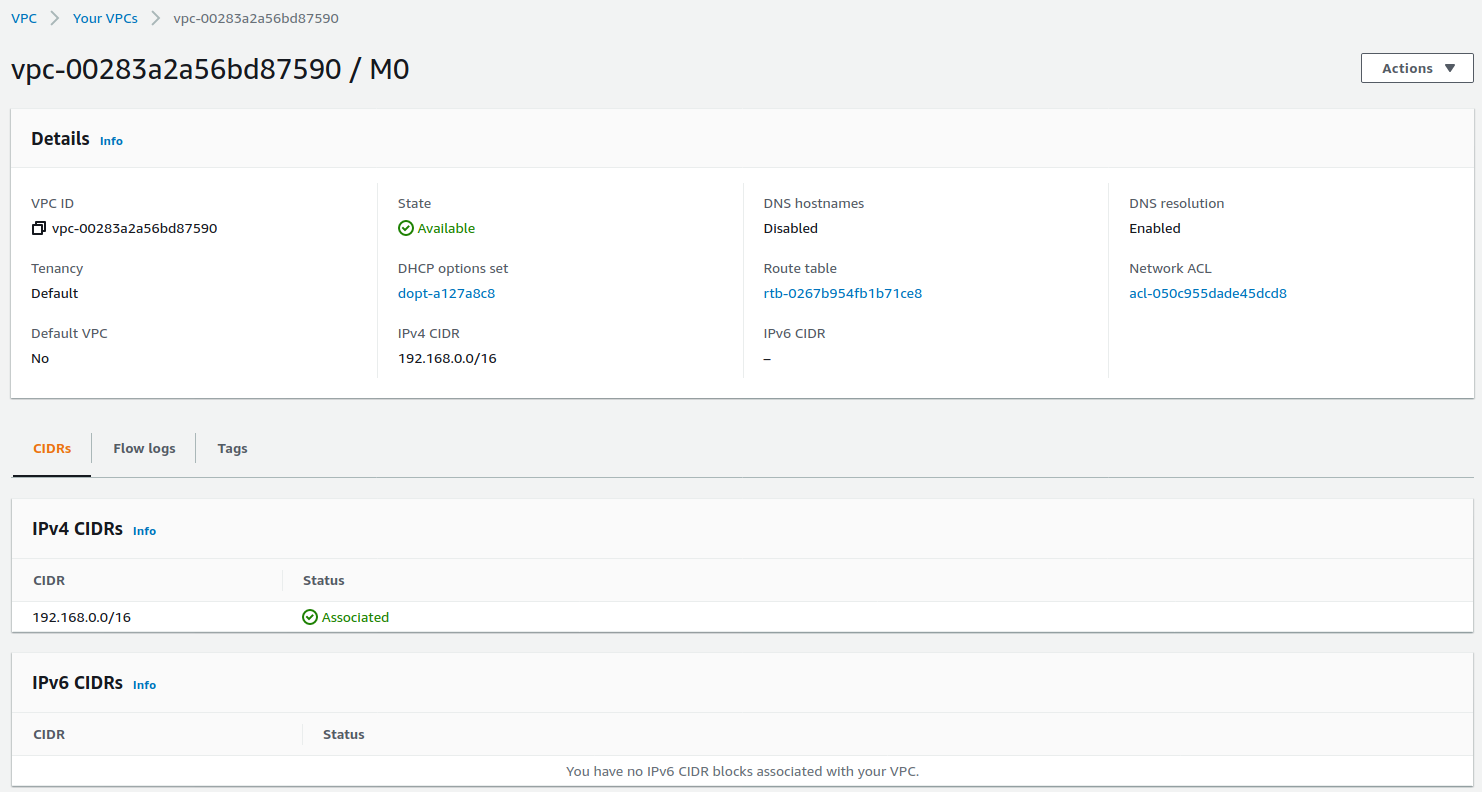

新建 vpc 详细信息如下 vpc detail

创建两个子网

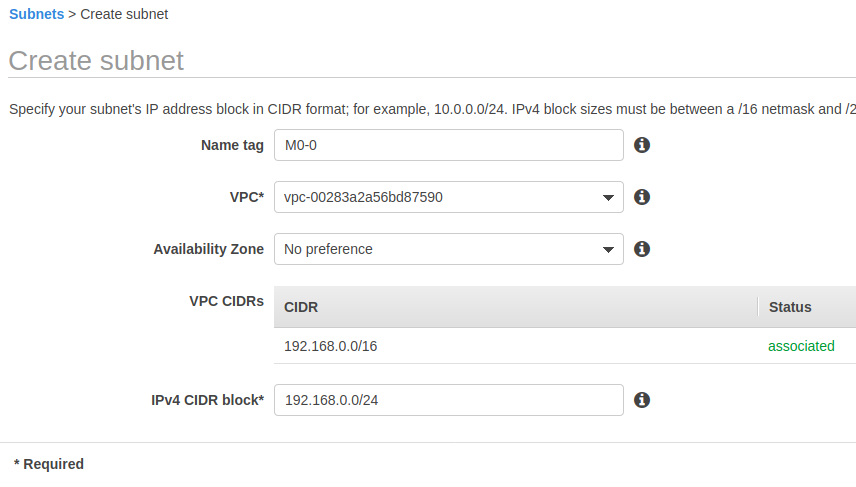

M0-0 : 192.168.0.0/24

subnet m0-0

M0-1 : 192.168.1.0/24

subnet m0-0

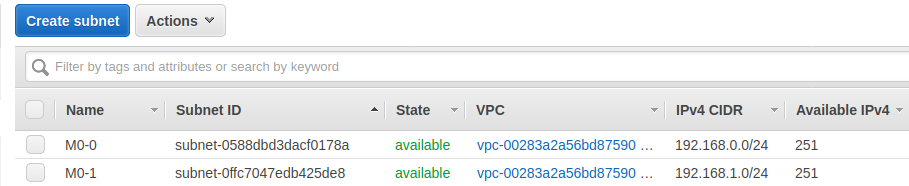

子网详细信息

subnet detail

创建互联网网关

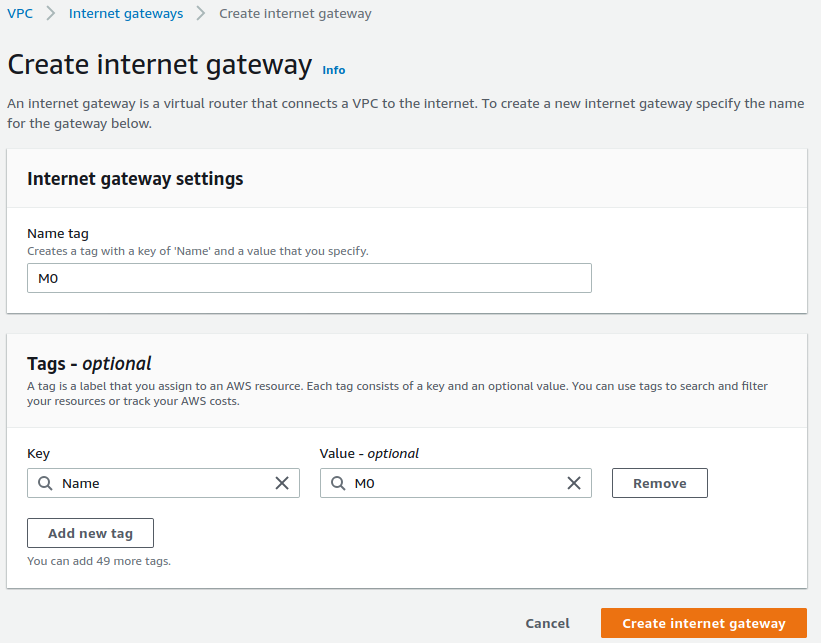

internet gateway

选择 Actions -> Attach to VPC 将网关附加到 VPC M0

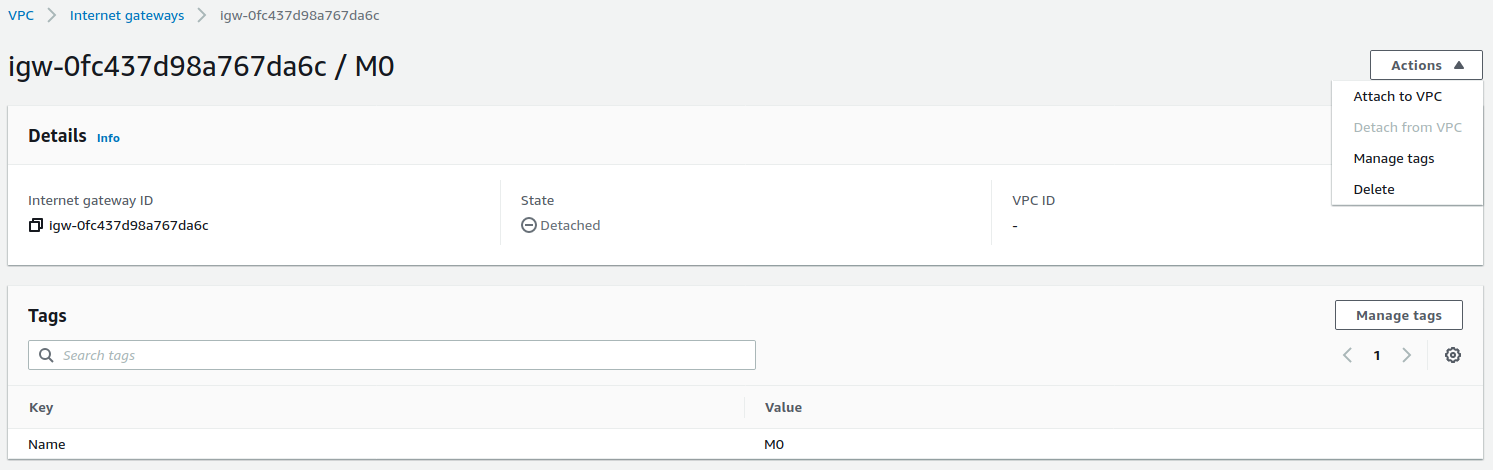

internet gateway detail

网关附加到 VPC M0

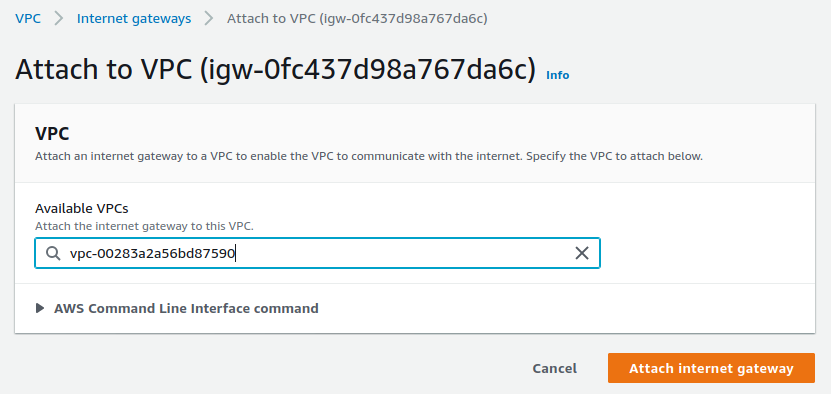

attatch igw to vpc

新建立路由表

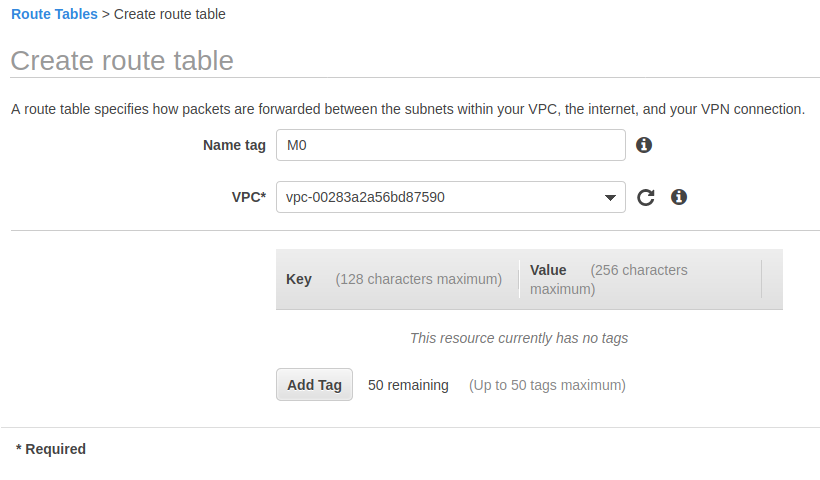

route table

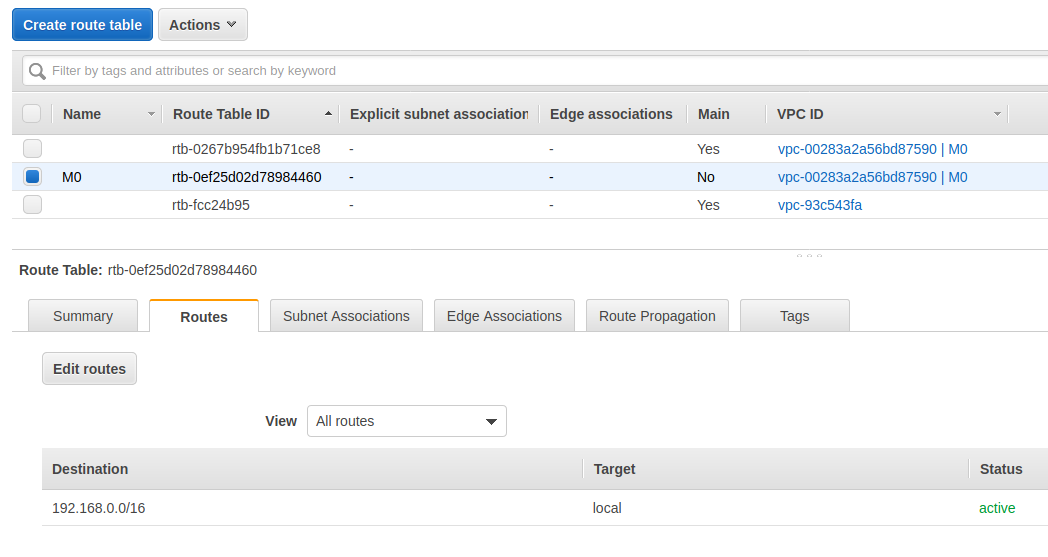

新建立的路由表默认只有一条规则，用于 VPC 内部

route default rule

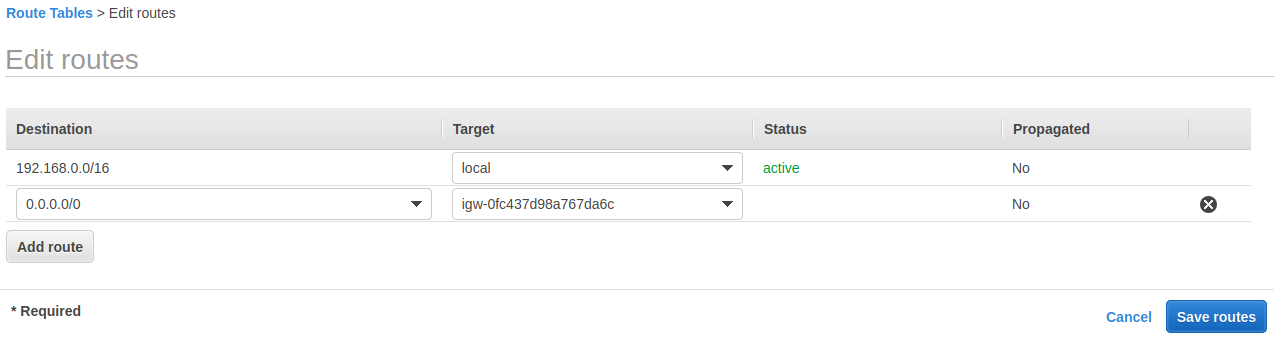

添加一条路由规则，将流向 VPC 外的流量发送到互联网网关

  • Destination : 0.0.0.0/0
  • Target : 之前创建的互联网网关

route outside rule

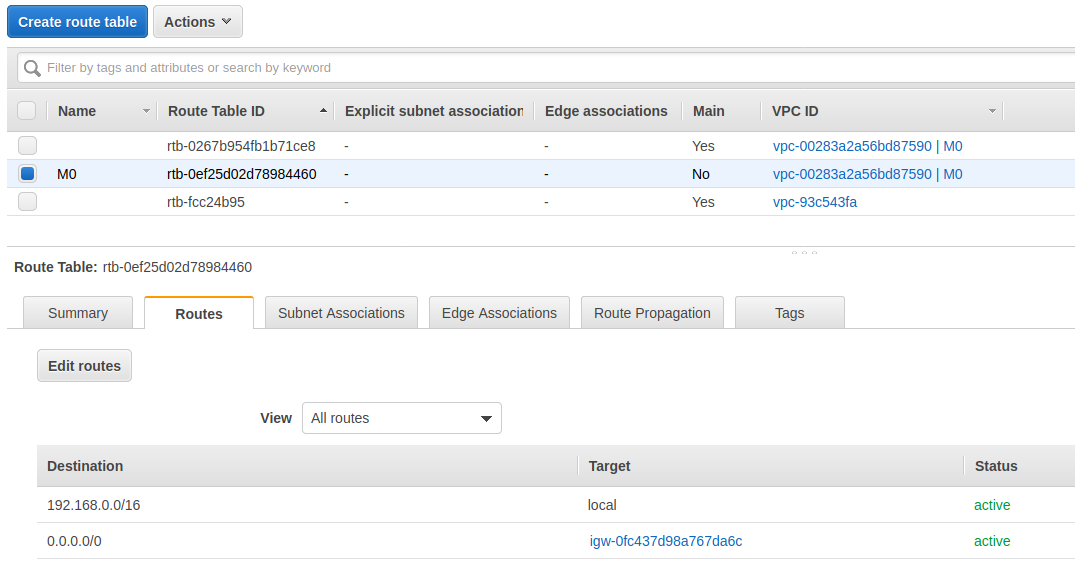

添加规则后的路由表

route rule detail

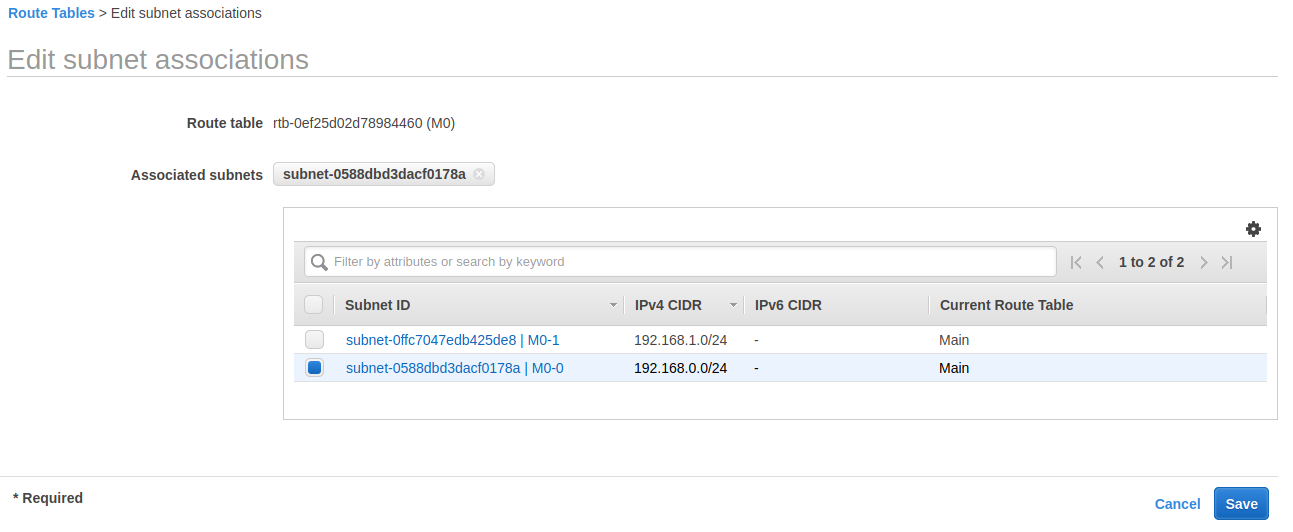

将路由表关联 M0-0 子网，使得该子网能够访问公网

associate subnet

关联子网后的路由表

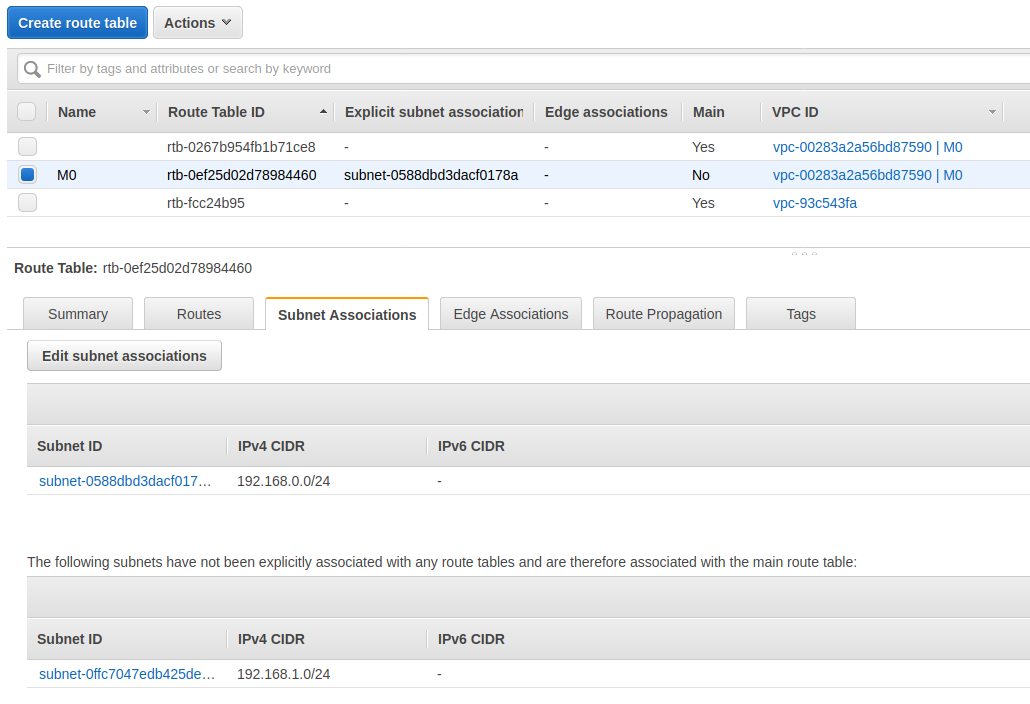

subnet association

创建公网 Security Group

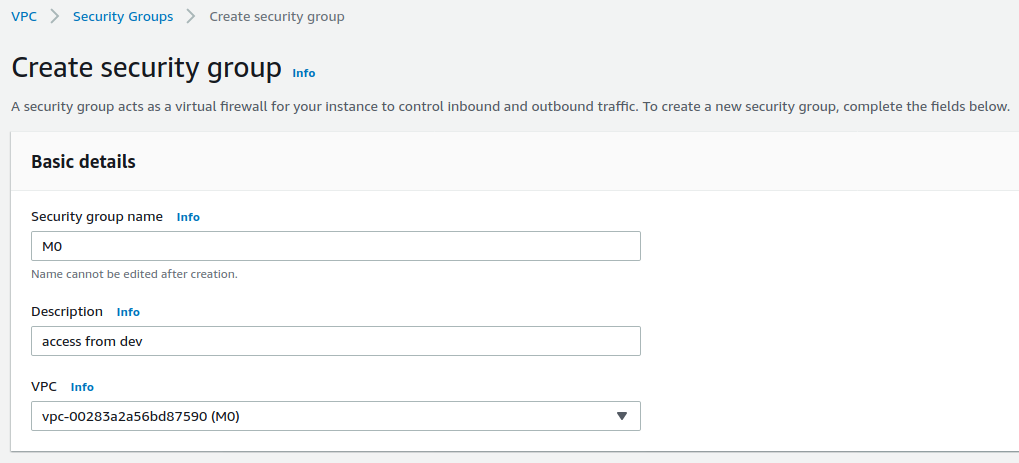

在 VPC M0 上创建一个 Security Group

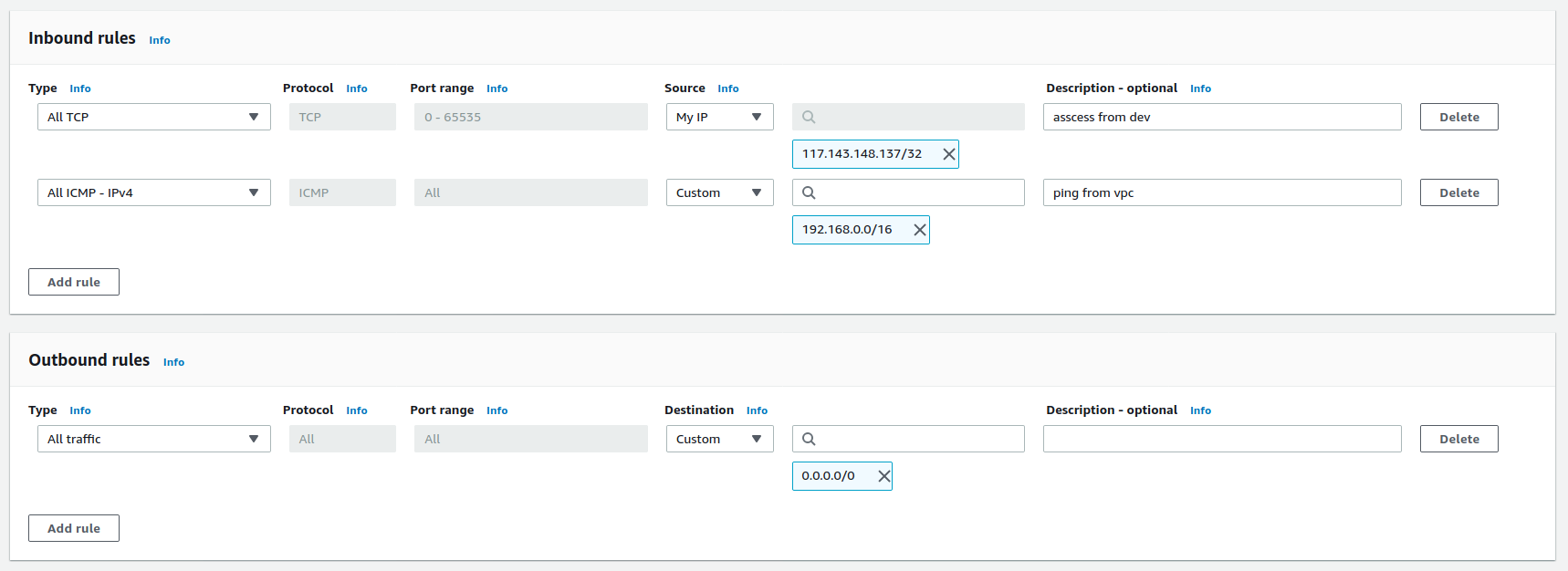

Security Group 的规则如下

  • 允许来自当前开发机器的所有 TCP 链接
  • 允许来自 VPC 内部的 ICMP-IPv4，用于 ping 测试

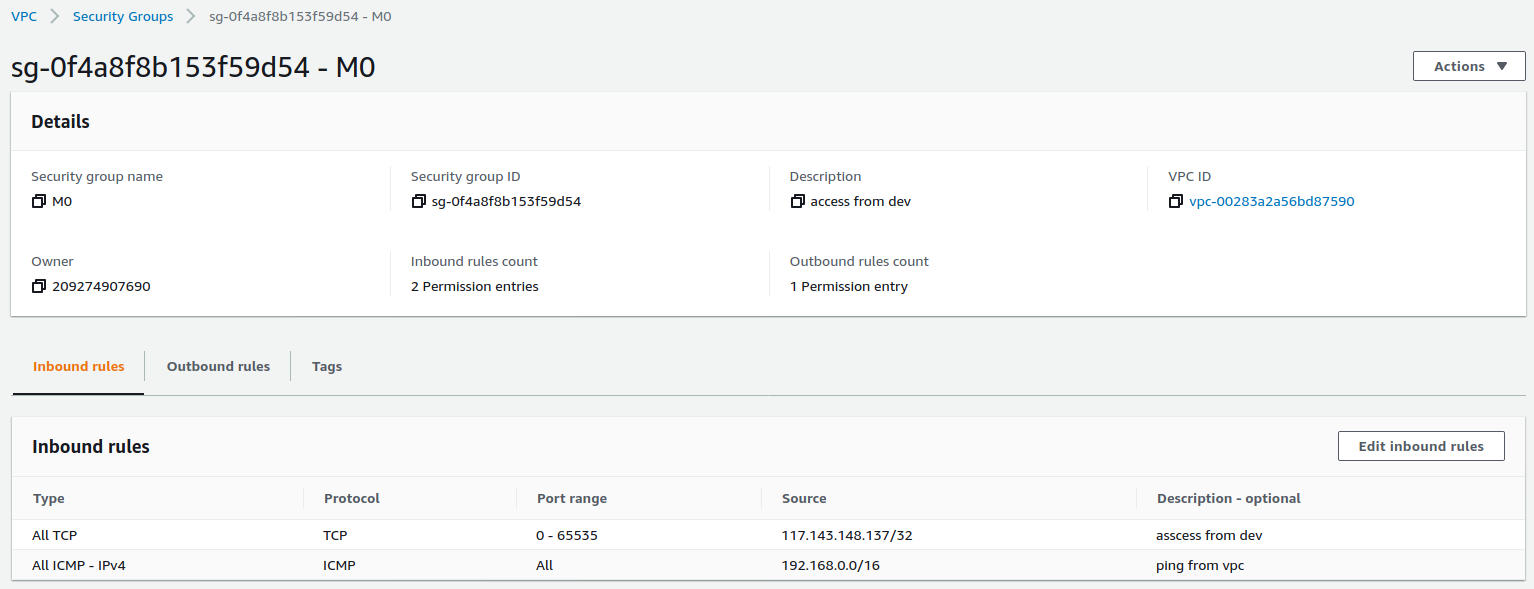

Security Group 详细信息


创建 NAT 实例

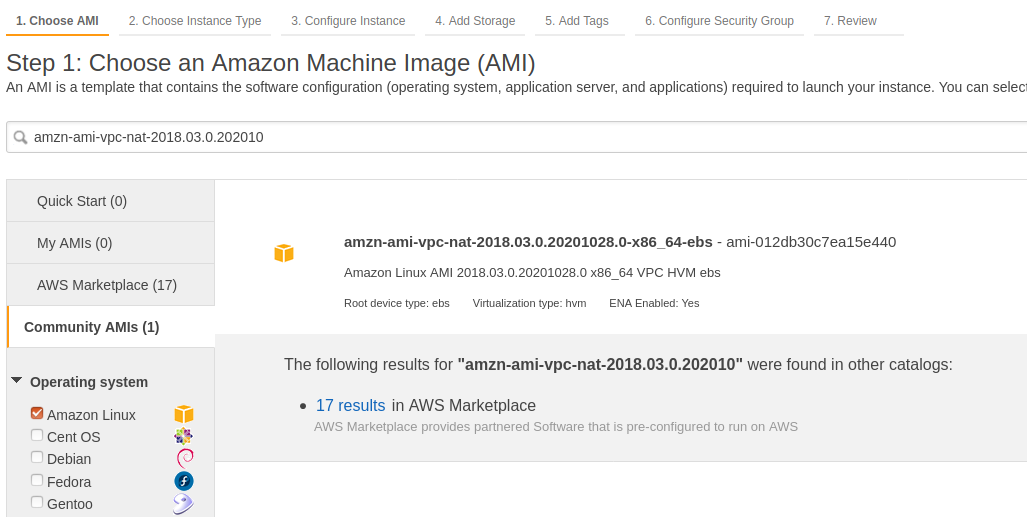

AMI 选择最新的 NAT Image

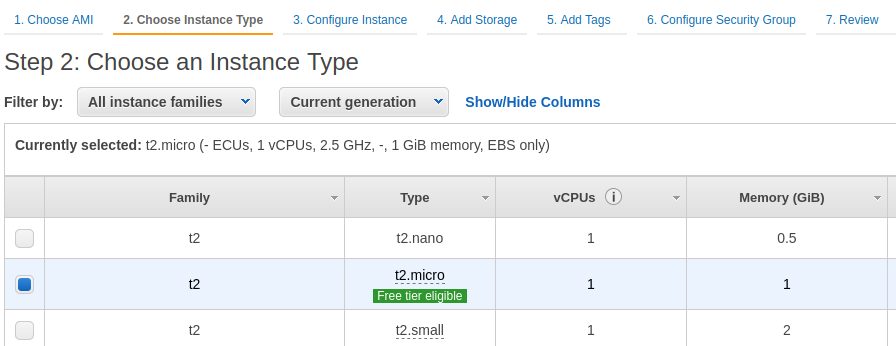

选择实例类型，本次演示选择 t2.micro

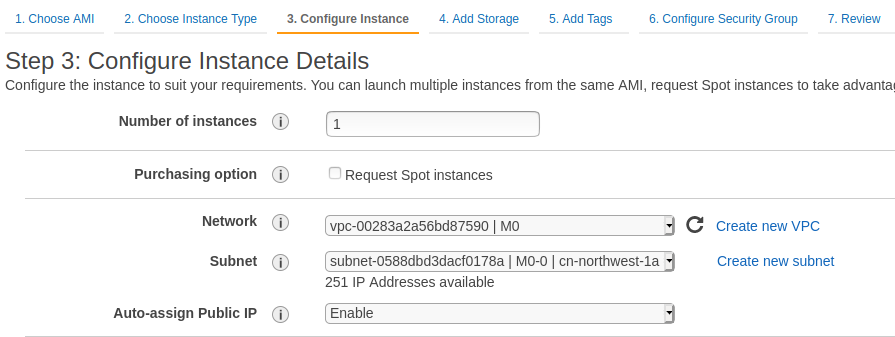

配置实例：

  • Network : 选择 VPC M0
  • Subnet : 选择 M0-0
  • Auto-assign Public IP : Enable


添加标签 Name -> M0-0-0


Security Group 选择之前创建的 M0

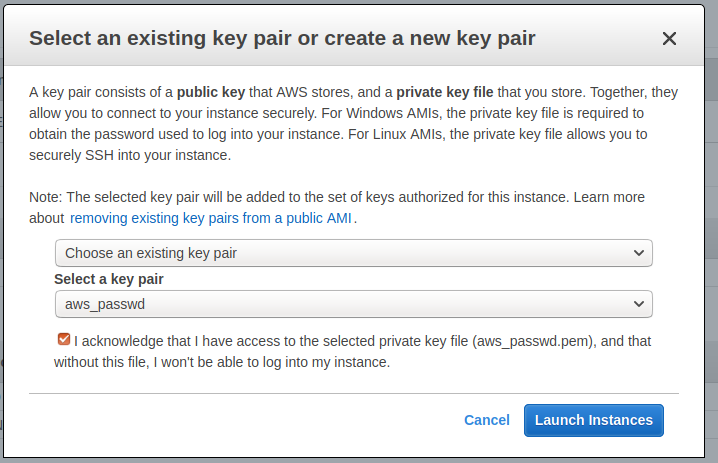

选择一个 key pair，然后启动实例


禁用 NAT 实例的 SrcDestCheck 属性

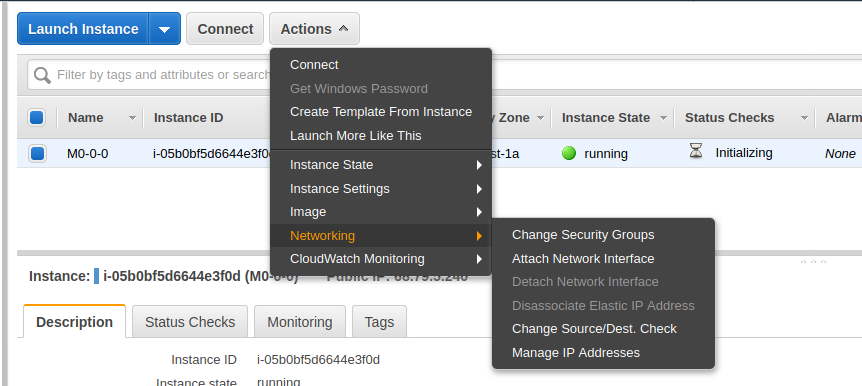

依次选择 NAT 实例 M0-0-0 -> Actions -> Networking -> Change Source/Dest.Check

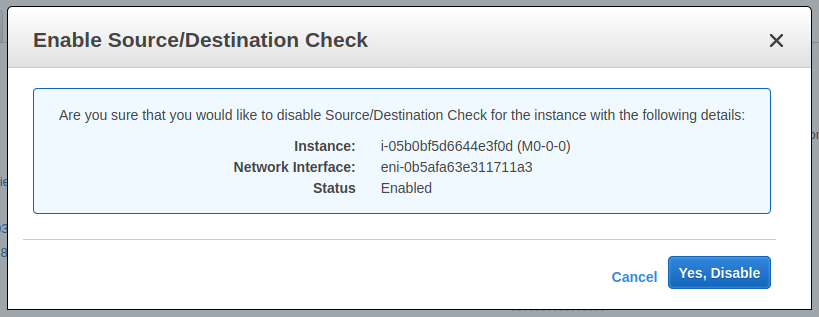

选择 Yes, Disable

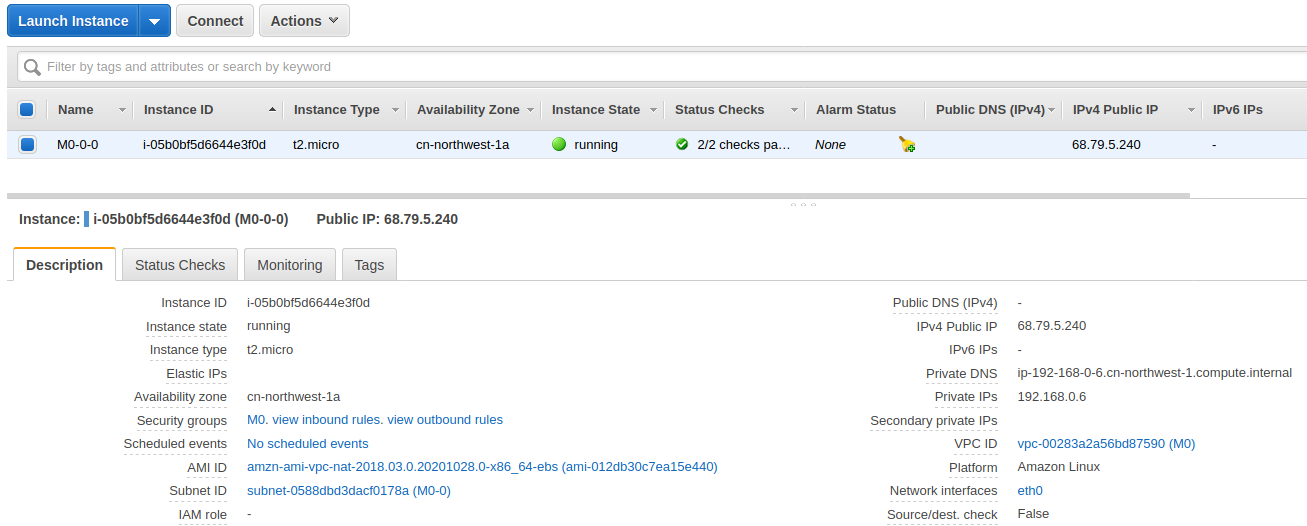

NAT 实例详细信息

  • 公网 IP 为 68.79.5.240


SSH 远程登录 M0-0-0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

$ ssh -i ~/.ssh/aws_passed.pem ec2-user@68.79.5.240
The authenticity of host '68.79.5.240 (68.79.5.240)' can't be established.
ECDSA key fingerprint is SHA256:Z14wTfP8Yl2nCuAASW4LXyNflgTOEtnR46dtsKGZ2Zo.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '68.79.5.240' (ECDSA) to the list of known hosts.

       __|  __|_  )
       _|  (     /   Amazon Linux AMI
      ___|\___|___|

https://aws.amazon.com/amazon-linux-ami/2018.03-release-notes/
[ec2-user@ip-192-168-0-6 ~]$ ping www.baidu.com
PING www.a.shifen.com (220.181.38.150) 56(84) bytes of data.
64 bytes from 220.181.38.150: icmp_seq=1 ttl=46 time=20.2 ms
64 bytes from 220.181.38.150: icmp_seq=2 ttl=46 time=20.2 ms
64 bytes from 220.181.38.150: icmp_seq=3 ttl=46 time=20.3 ms

更新 VPC M0 主路由表

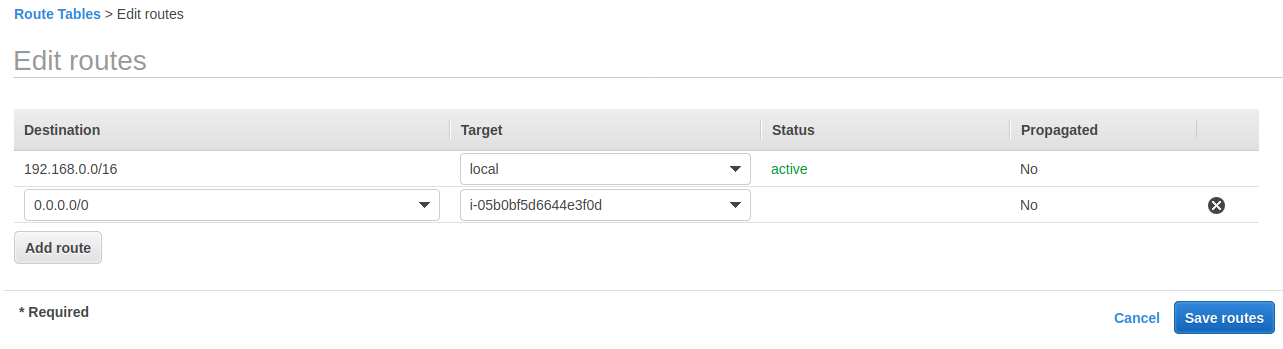

选择 M0 的主路由表，添加规则：流向外网的所有流量路由到 NAT 实例

  • Destination : 0.0.0.0/0 流向外网的所有流量
  • Target : 选择创建的 NAT 实例 M0-0-0

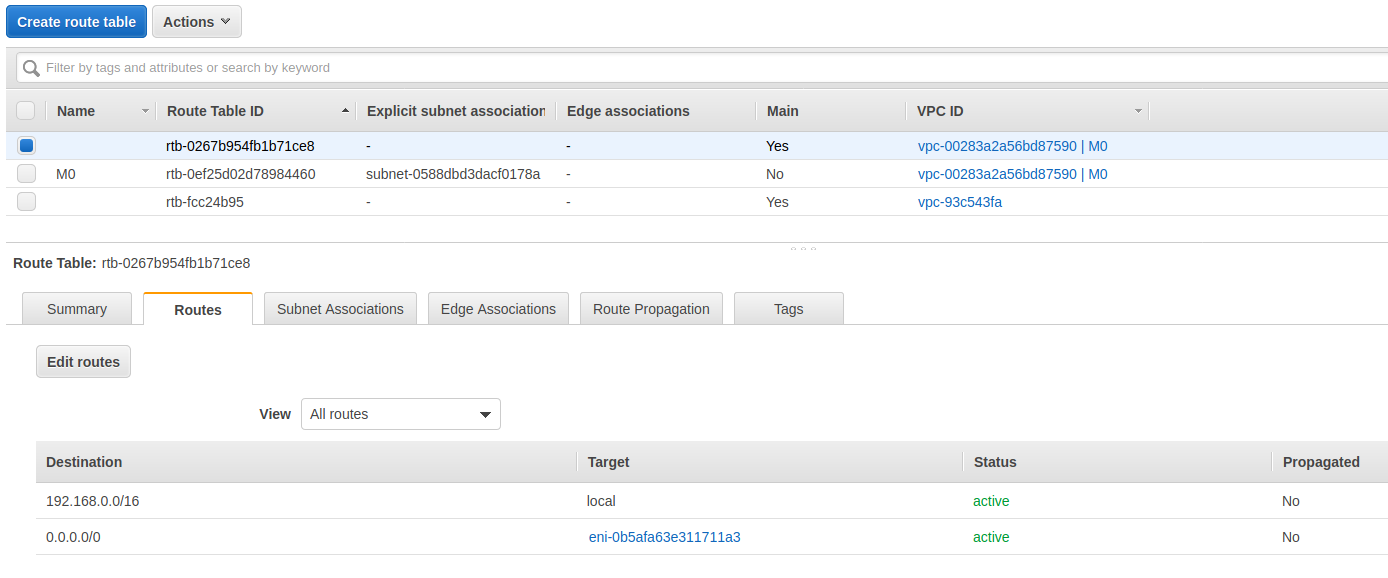

主路由表详细信息

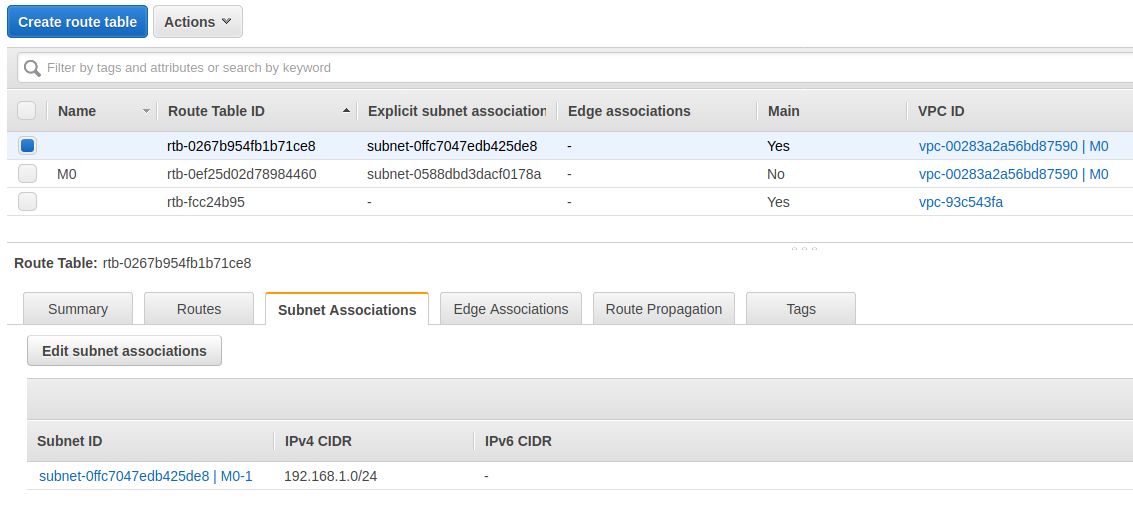

将主路由表关联到 M0-1 子网


创建私网 Security Group

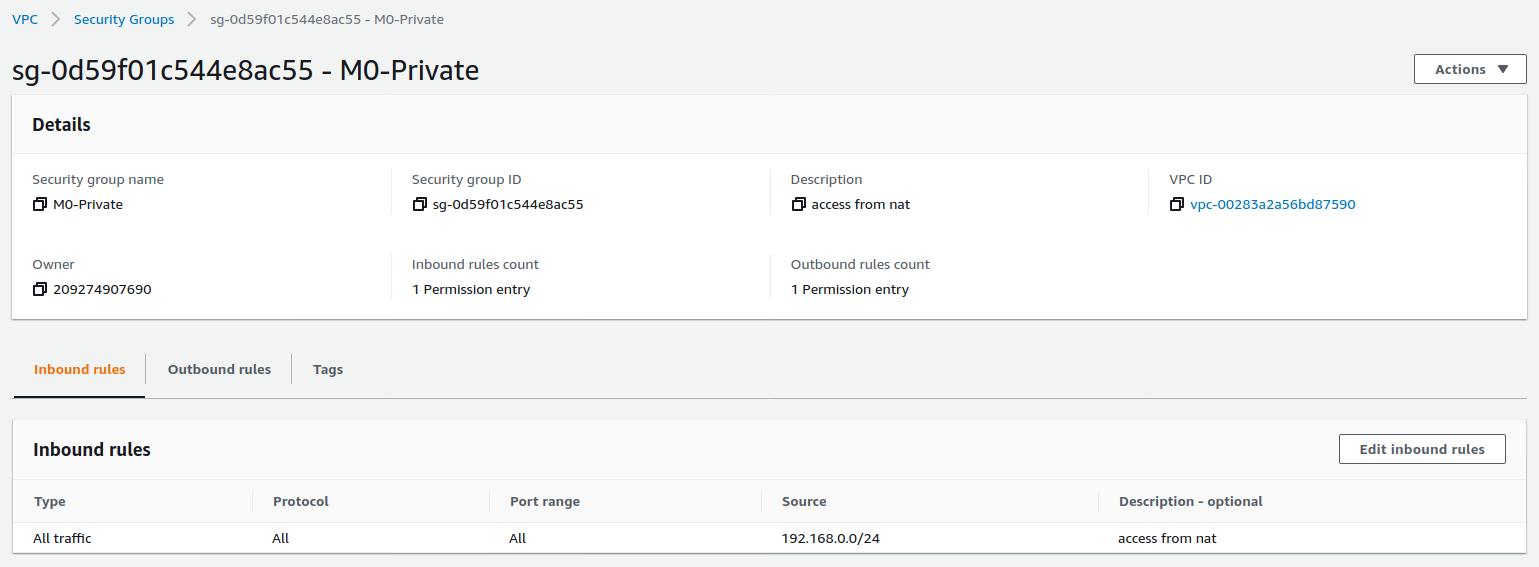

创建一个私网的 Security Group，允许所有来自 M0-0 子网的所有数据


创建私网实例

创建私网实例，用于 NAT 测试

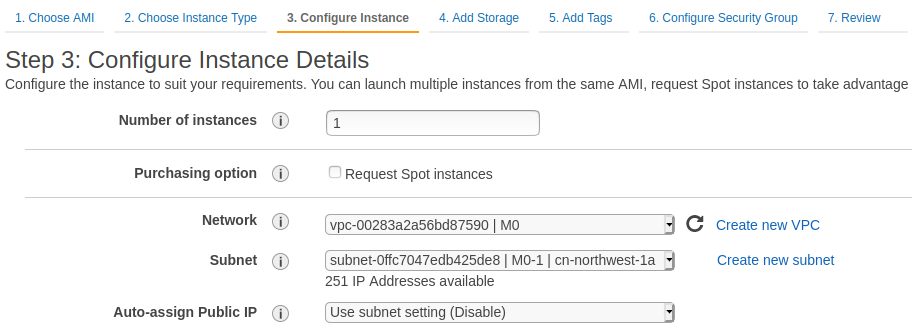

  • Network : 选择 VPC M0
  • Subnet : 选择 M0-1
  • Auto-assign Public IP : Disable


Security Group 选择创建的私网安全组 M0-Private


私网实例详细信息如下

  • 私网 IP 地址为 : 192.168.1.64
  • 没有公网 IP


从 NAT 实例 M0-0-0 ping M0-1-0

1
2
3
4
5
6
7
8

[ec2-user@ip-192-168-0-6 ~]$ ping 192.168.1.64
PING 192.168.1.64 (192.168.1.64) 56(84) bytes of data.
64 bytes from 192.168.1.64: icmp_seq=1 ttl=64 time=0.495 ms
64 bytes from 192.168.1.64: icmp_seq=2 ttl=64 time=0.451 ms
64 bytes from 192.168.1.64: icmp_seq=3 ttl=64 time=0.442 ms
64 bytes from 192.168.1.64: icmp_seq=4 ttl=64 time=0.476 ms
64 bytes from 192.168.1.64: icmp_seq=5 ttl=64 time=0.486 ms

测试私网实例 M0-1-0

从 NAT 实例 M0-0-0 ssh 进入 M0-1-0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

[ec2-user@ip-192-168-0-6 ~]$ ssh -i ~/.ssh/aws_passed.pem ubuntu@192.168.1.64
The authenticity of host '192.168.1.64 (192.168.1.64)' can't be established.
ECDSA key fingerprint is SHA256:PWhn4SijJrgQzU56d1+5sP/o3BR2/GwRq0JJieClNGU.
ECDSA key fingerprint is MD5:d5:d7:52:8d:0b:11:18:29:e4:1a:55:15:bc:8a:d1:d6.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.1.64' (ECDSA) to the list of known hosts.
Welcome to Ubuntu 20.04 LTS (GNU/Linux 5.4.0-1009-aws x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/advantage

  System information as of Fri Nov 13 02:23:18 UTC 2020

  System load:  0.0               Processes:             99
  Usage of /:   16.2% of 7.69GB   Users logged in:       0
  Memory usage: 18%               IPv4 address for eth0: 192.168.1.64
  Swap usage:   0%

0 updates can be installed immediately.
0 of these updates are security updates.


The list of available updates is more than a week old.
To check for new updates run: sudo apt update


The programs included with the Ubuntu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.

To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.
ubuntu@ip-192-168-1-64:~$

测试 M0-1-0 访问外网

1
2
3
4
5
6
7
8

ubuntu@ip-192-168-1-64:~$ ping www.baidu.com
PING www.a.shifen.com (220.181.38.149) 56(84) bytes of data.
64 bytes from 220.181.38.149 (220.181.38.149): icmp_seq=1 ttl=45 time=21.9 ms
64 bytes from 220.181.38.149 (220.181.38.149): icmp_seq=2 ttl=45 time=22.0 ms
64 bytes from 220.181.38.149 (220.181.38.149): icmp_seq=3 ttl=45 time=21.9 ms
64 bytes from 220.181.38.149 (220.181.38.149): icmp_seq=4 ttl=45 time=22.0 ms
64 bytes from 220.181.38.149 (220.181.38.149): icmp_seq=5 ttl=45 time=21.9 ms

设置 NAT 端口转发

在 NAT 实例 M0-0-0 设置端口转发: 将 M0-0-0 的 10022 端口上的 TCP 数据转发到 M0-1-0 的 22端口

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

[ec2-user@ip-192-168-0-6 ~]$ sudo iptables -t nat -A PREROUTING -i eth0 -p tcp --dport 10022 -j DNAT --to 192.168.1.64:22
[ec2-user@ip-192-168-0-6 ~]$ sudo iptables -t nat -L
Chain PREROUTING (policy ACCEPT)
target     prot opt source               destination
DNAT       tcp  --  anywhere             anywhere             tcp dpt:10022 to:192.168.1.64:22

Chain INPUT (policy ACCEPT)
target     prot opt source               destination

Chain OUTPUT (policy ACCEPT)
target     prot opt source               destination

Chain POSTROUTING (policy ACCEPT)
target     prot opt source               destination
MASQUERADE  all  --  anywhere             anywhere
[ec2-user@ip-192-168-0-6 ~]$

在本地开发机器上，通过 NAT实例 M0-0-0 的 10022 端口 SSH 登录 M0-1-0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

$ ssh -i~/.ssh/aws_passed.pem -p 10022 ubuntu@68.79.5.240
Welcome to Ubuntu 20.04 LTS (GNU/Linux 5.4.0-1009-aws x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/advantage

  System information as of Fri Nov 13 02:33:55 UTC 2020

  System load:  0.0               Processes:             99
  Usage of /:   16.3% of 7.69GB   Users logged in:       0
  Memory usage: 18%               IPv4 address for eth0: 192.168.1.64
  Swap usage:   0%


0 updates can be installed immediately.
0 of these updates are security updates.


The list of available updates is more than a week old.
To check for new updates run: sudo apt update
Failed to connect to https://changelogs.ubuntu.com/meta-release-lts. Check your Internet connection or proxy settings


Last login: Fri Nov 13 02:23:19 2020 from 192.168.0.6
To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.

ubuntu@ip-192-168-1-64:~$ ping www.baidu.com
PING www.a.shifen.com (220.181.38.150) 56(84) bytes of data.
64 bytes from 220.181.38.150 (220.181.38.150): icmp_seq=1 ttl=45 time=20.6 ms
64 bytes from 220.181.38.150 (220.181.38.150): icmp_seq=2 ttl=45 time=20.7 ms
64 bytes from 220.181.38.150 (220.181.38.150): icmp_seq=3 ttl=45 time=20.8 ms
64 bytes from 220.181.38.150 (220.181.38.150): icmp_seq=4 ttl=45 time=20.7 ms

参考资料

aws, nat
aws nat
