iptables-essentials

Nov 9, 2020 2020-11-09T21:42:00+08:00 by trimstray
17 min

https://github.com/trimstray/iptables-essentials

Table of Contents

Tools to help you configure Iptables

Manuals/Howtos/Tutorials

Useful Kernel Settings (sysctl) Configuration

rp_filter

Disable routing triangulation. Respond to queries out the same interface, not another. Also protects against IP spoofing.

1
2
3

cat << EOF >> /etc/sysctl.d/40-custom.conf
net/ipv4/conf/all/rp_filter = 1
EOF
log_martians

Enable logging of packets with malformed IP addresses.

1
2
3

cat << EOF >> /etc/sysctl.d/40-custom.conf
net/ipv4/conf/all/log_martians = 1
EOF
send_redirects

Disables sending of all IPv4 ICMP redirected packets on all interfaces.

1
2
3

cat << EOF >> /etc/sysctl.d/40-custom.conf
net/ipv4/conf/all/send_redirects = 0
EOF
accept_source_route

Disable source routed packets (packets with the Strict Source Route (SSR) or Loose Source Routing (LSR) option set).

1
2
3

cat << EOF >> /etc/sysctl.d/40-custom.conf
net/ipv4/conf/all/accept_source_route = 0
EOF
accept_redirects

Disable acceptance of ICMP redirects.

1
2
3

cat << EOF >> /etc/sysctl.d/40-custom.conf
net/ipv4/conf/all/accept_redirects = 0
EOF
tcp_syncookies

Turn on SYN-flood protections (protection from Denial of Service (DOS) attacks).

1
2
3

cat << EOF >> /etc/sysctl.d/40-custom.conf
net/ipv4/tcp_syncookies = 1
EOF
icmp_echo_ignore_broadcasts

Disable responding to ping broadcasts.

1
2
3

cat << EOF >> /etc/sysctl.d/40-custom.conf
net/ipv4/icmp_echo_ignore_broadcasts = 1
EOF
ip_forward

Enable IP routing. Required if your firewall is protecting a network, NAT included.

1
2
3

cat << EOF >> /etc/sysctl.d/40-custom.conf
net/ipv4/ip_forward = 1
EOF

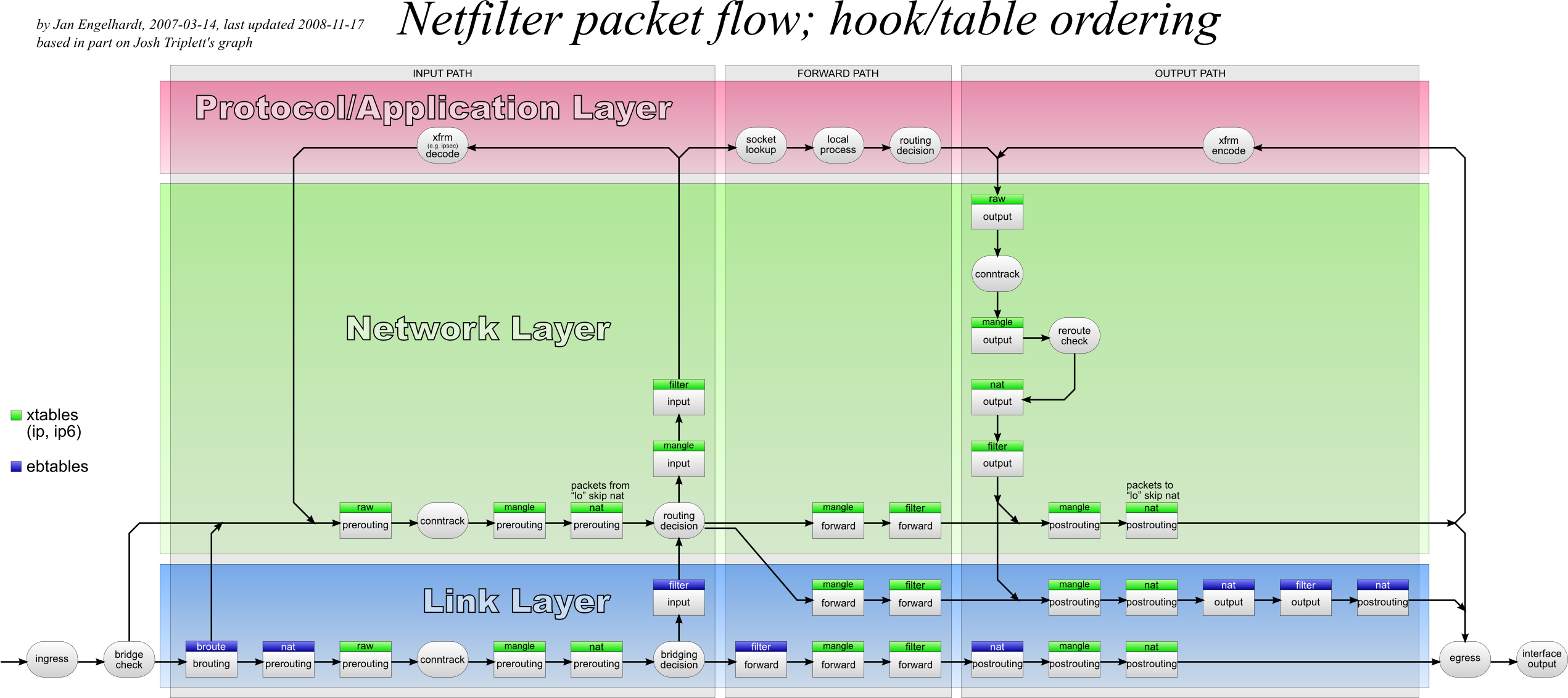

How it works?

iptables-packet-flow-ng

Iptables Rules

Saving Rules

Debian Based
1

netfilter-persistent save
RedHat Based
1

service iptables save

List out all of the active iptables rules with verbose

1

iptables -n -L -v

List out all of the active iptables rules with numeric lines and verbose

1

iptables -n -L -v --line-numbers

1

iptables -S

List Rules as Tables for INPUT chain

1

iptables -L INPUT

1

iptables -S INPUT

Show Packet Counts and Aggregate Size

1

iptables -L INPUT -v

To display INPUT or OUTPUT chain rules with numeric lines and verbose

1
2

iptables -L INPUT -n -v
iptables -L OUTPUT -n -v --line-numbers

Delete Rule by Chain and Number

1

iptables -D INPUT 10

Delete Rule by Specification

1

iptables -D INPUT -m conntrack --ctstate INVALID -j DROP

Flush All Rules, Delete All Chains, and Accept All

1
2
3
4
5
6
7
8

iptables -P INPUT ACCEPT
iptables -P FORWARD ACCEPT
iptables -P OUTPUT ACCEPT

iptables -t nat -F
iptables -t mangle -F
iptables -F
iptables -X

Flush All Chains

1

iptables -F

Flush a Single Chain

1

iptables -F INPUT

Insert Firewall Rules

1

iptables -I INPUT 2 -s 202.54.1.2 -j DROP

Allow Loopback Connections

1
2

iptables -A INPUT -i lo -j ACCEPT
iptables -A OUTPUT -o lo -j ACCEPT

1

iptables -A INPUT -m conntrack --ctstate ESTABLISHED,RELATED -j ACCEPT

Allow Established Outgoing Connections

1

iptables -A OUTPUT -m conntrack --ctstate ESTABLISHED -j ACCEPT

Internal to External

1

iptables -A FORWARD -i eth1 -o eth0 -j ACCEPT

Drop Invalid Packets

1

iptables -A INPUT -m conntrack --ctstate INVALID -j DROP

Block an IP Address

1

iptables -A INPUT -s 192.168.252.10 -j DROP

Block and IP Address and Reject

1

iptables -A INPUT -s 192.168.252.10 -j REJECT

Block Connections to a Network Interface

1

iptables -A INPUT -i eth0 -s 192.168.252.10 -j DROP

Allow All Incoming SSH

1
2

iptables -A INPUT -p tcp --dport 22 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 22 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow Incoming SSH from Specific IP address or subnet

1
2

iptables -A INPUT -p tcp -s 192.168.240.0/24 --dport 22 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 22 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow Outgoing SSH

1
2

iptables -A OUTPUT -p tcp --dport 22 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A INPUT -p tcp --sport 22 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow Incoming Rsync from Specific IP Address or Subnet

1
2

iptables -A INPUT -p tcp -s 192.168.240.0/24 --dport 873 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 873 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow All Incoming HTTP

1
2

iptables -A INPUT -p tcp --dport 80 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 80 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow All Incoming HTTPS

1
2

iptables -A INPUT -p tcp --dport 443 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 443 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow All Incoming HTTP and HTTPS

1
2

iptables -A INPUT -p tcp -m multiport --dports 80,443 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp -m multiport --dports 80,443 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow MySQL from Specific IP Address or Subnet

1
2

iptables -A INPUT -p tcp -s 192.168.240.0/24 --dport 3306 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 3306 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow MySQL to Specific Network Interface

1
2

iptables -A INPUT -i eth1 -p tcp --dport 3306 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -o eth1 -p tcp --sport 3306 -m conntrack --ctstate ESTABLISHED -j ACCEPT

PostgreSQL from Specific IP Address or Subnet

1
2

iptables -A INPUT -p tcp -s 192.168.240.0/24 --dport 5432 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 5432 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow PostgreSQL to Specific Network Interface

1
2

iptables -A INPUT -i eth1 -p tcp --dport 5432 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -o eth1 -p tcp --sport 5432 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Block Outgoing SMTP Mail

1

iptables -A OUTPUT -p tcp --dport 25 -j REJECT

Allow All Incoming SMTP

1
2

iptables -A INPUT -p tcp --dport 25 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 25 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow All Incoming IMAP

1
2

iptables -A INPUT -p tcp --dport 143 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 143 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow All Incoming IMAPS

1
2

iptables -A INPUT -p tcp --dport 993 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 993 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow All Incoming POP3

1
2

iptables -A INPUT -p tcp --dport 110 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 110 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Allow All Incoming POP3S

1
2

iptables -A INPUT -p tcp --dport 995 -m conntrack --ctstate NEW,ESTABLISHED -j ACCEPT
iptables -A OUTPUT -p tcp --sport 995 -m conntrack --ctstate ESTABLISHED -j ACCEPT

Drop Private Network Address On Public Interface

1
2

iptables -A INPUT -i eth1 -s 192.168.0.0/24 -j DROP
iptables -A INPUT -i eth1 -s 10.0.0.0/8 -j DROP

Drop All Outgoing to Facebook Networks

Get Facebook AS:

1

whois -h v4.whois.cymru.com " -v $(host facebook.com | grep "has address" | cut -d " " -f4)" | tail -n1 | awk '{print $1}'

Drop:

1
2
3
4
5

for i in $(whois -h whois.radb.net -- '-i origin AS32934' | grep "^route:" | cut -d ":" -f2 | sed -e 's/^[ \t]*//' | sort -n -t . -k 1,1 -k 2,2 -k 3,3 -k 4,4 | cut -d ":" -f2 | sed 's/$/;/') ; do

  iptables -A OUTPUT -s "$i" -j REJECT

done

Log and Drop Packets

1
2

iptables -A INPUT -i eth1 -s 10.0.0.0/8 -j LOG --log-prefix "IP_SPOOF A: "
iptables -A INPUT -i eth1 -s 10.0.0.0/8 -j DROP

By default everything is logged to /var/log/messages file:

1
2

tail -f /var/log/messages
grep --color 'IP SPOOF' /var/log/messages

Log and Drop Packets with Limited Number of Log Entries

1
2

iptables -A INPUT -i eth1 -s 10.0.0.0/8 -m limit --limit 5/m --limit-burst 7 -j LOG --log-prefix "IP_SPOOF A: "
iptables -A INPUT -i eth1 -s 10.0.0.0/8 -j DROP

Drop or Accept Traffic From Mac Address

1
2

iptables -A INPUT -m mac --mac-source 00:0F:EA:91:04:08 -j DROP
iptables -A INPUT -p tcp --destination-port 22 -m mac --mac-source 00:0F:EA:91:04:07 -j ACCEPT

Block or Allow ICMP Ping Request

1
2

iptables -A INPUT -p icmp --icmp-type echo-request -j DROP
iptables -A INPUT -i eth1 -p icmp --icmp-type echo-request -j DROP

Specifying Multiple Ports with multiport

1

iptables -A INPUT -i eth0 -p tcp -m state --state NEW -m multiport --dports ssh,smtp,http,https -j ACCEPT

Load Balancing with random* or nth*

1
2
3
4
5
6

_ips=("172.31.250.10" "172.31.250.11" "172.31.250.12" "172.31.250.13")

for ip in "${_ips[@]}" ; do
  iptables -A PREROUTING -i eth0 -p tcp --dport 80 -m state --state NEW -m nth --counter 0 --every 4 --packet 0 \
    -j DNAT --to-destination ${ip}:80
done

or

1
2
3
4
5
6

_ips=("172.31.250.10" "172.31.250.11" "172.31.250.12" "172.31.250.13")

for ip in "${_ips[@]}" ; do
  iptables -A PREROUTING -i eth0 -p tcp --dport 80 -m state --state NEW -m random --average 25 \
    -j DNAT --to-destination ${ip}:80
done

Restricting the Number of Connections with limit and iplimit*

1
2

iptables -A FORWARD -m state --state NEW -p tcp -m multiport --dport http,https -o eth0 -i eth1 \
    -m limit --limit 20/hour --limit-burst 5 -j ACCEPT

or

1

iptables -A INPUT -p tcp -m state --state NEW --dport http -m iplimit --iplimit-above 5 -j DROP

Maintaining a List of recent Connections to Match Against

1
2

iptables -A FORWARD -m recent --name portscan --rcheck --seconds 100 -j DROP
iptables -A FORWARD -p tcp -i eth0 --dport 443 -m recent --name portscan --set -j DROP

Matching Against a string* in a Packet’s Data Payload

1
2

iptables -A FORWARD -m string --string '.com' -j DROP
iptables -A FORWARD -m string --string '.exe' -j DROP

Time-based Rules with time*

1
2

iptables -A FORWARD -p tcp -m multiport --dport http,https -o eth0 -i eth1 \
    -m time --timestart 21:30 --timestop 22:30 --days Mon,Tue,Wed,Thu,Fri -j ACCEPT

Packet Matching Based on TTL Values

1

iptables -A INPUT -s 1.2.3.4 -m ttl --ttl-lt 40 -j REJECT

Protection against port scanning

1
2
3

iptables -N port-scanning
iptables -A port-scanning -p tcp --tcp-flags SYN,ACK,FIN,RST RST -m limit --limit 1/s --limit-burst 2 -j RETURN
iptables -A port-scanning -j DROP

SSH brute-force protection

1
2

iptables -A INPUT -p tcp --dport ssh -m conntrack --ctstate NEW -m recent --set
iptables -A INPUT -p tcp --dport ssh -m conntrack --ctstate NEW -m recent --update --seconds 60 --hitcount 10 -j DROP

Syn-flood protection

1
2
3
4
5
6
7
8
9
10
11
12

iptables -N syn_flood

iptables -A INPUT -p tcp --syn -j syn_flood
iptables -A syn_flood -m limit --limit 1/s --limit-burst 3 -j RETURN
iptables -A syn_flood -j DROP

iptables -A INPUT -p icmp -m limit --limit  1/s --limit-burst 1 -j ACCEPT

iptables -A INPUT -p icmp -m limit --limit 1/s --limit-burst 1 -j LOG --log-prefix PING-DROP:
iptables -A INPUT -p icmp -j DROP

iptables -A OUTPUT -p icmp -j ACCEPT
Mitigating SYN Floods With SYNPROXY
1
2
3

iptables -t raw -A PREROUTING -p tcp -m tcp --syn -j CT --notrack
iptables -A INPUT -p tcp -m tcp -m conntrack --ctstate INVALID,UNTRACKED -j SYNPROXY --sack-perm --timestamp --wscale 7 --mss 1460
iptables -A INPUT -m conntrack --ctstate INVALID -j DROP

Block New Packets That Are Not SYN

1

iptables -A INPUT -p tcp ! --syn -m state --state NEW -j DROP

or

1

iptables -t mangle -A PREROUTING -p tcp ! --syn -m conntrack --ctstate NEW -j DROP

Force Fragments packets check

1

iptables -A INPUT -f -j DROP

XMAS packets

1

iptables -A INPUT -p tcp --tcp-flags ALL ALL -j DROP

Drop all NULL packets

1

iptables -A INPUT -p tcp --tcp-flags ALL NONE -j DROP

Block Uncommon MSS Values

1

iptables -t mangle -A PREROUTING -p tcp -m conntrack --ctstate NEW -m tcpmss ! --mss 536:65535 -j DROP

Block Packets With Bogus TCP Flags

1
2
3
4
5
6
7
8
9
10
11
12
13

iptables -t mangle -A PREROUTING -p tcp --tcp-flags FIN,SYN,RST,PSH,ACK,URG NONE -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags FIN,SYN FIN,SYN -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags SYN,RST SYN,RST -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags FIN,RST FIN,RST -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags FIN,ACK FIN -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags ACK,URG URG -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags ACK,FIN FIN -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags ACK,PSH PSH -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags ALL ALL -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags ALL NONE -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags ALL FIN,PSH,URG -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags ALL SYN,FIN,PSH,URG -j DROP
iptables -t mangle -A PREROUTING -p tcp --tcp-flags ALL SYN,RST,ACK,FIN,URG -j DROP

Block Packets From Private Subnets (Spoofing)

1
2
3
4
5
6

_subnets=("224.0.0.0/3" "169.254.0.0/16" "172.16.0.0/12" "192.0.2.0/24" "192.168.0.0/16" "10.0.0.0/8" "0.0.0.0/8" "240.0.0.0/5")

for _sub in "${_subnets[@]}" ; do
  iptables -t mangle -A PREROUTING -s "$_sub" -j DROP
done
iptables -t mangle -A PREROUTING -s 127.0.0.0/8 ! -i lo -j DROP

Advanced configuration examples

Packet handling in Python using NFQUEUE target

This target passes the packet to userspace using the nfnetlink_queue handler. The packet is put into the queue identified by its 16-bit queue number. Userspace can inspect and modify the packet if desired. Userspace must then drop or reinject the packet into the kernel.

ACCEPT all packets from specific source on (filter:INPUT) and DROP everything else

This rule forwards all filter:INPUT packets to queue 1 with NFQUEUE target.

1

iptables -A INPUT -j NFQUEUE --queue-num 1

Script to bind to netfilter queue 1 and handle packets.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

#!/usr/bin/python3

from netfilterqueue import NetfilterQueue
from scapy.all import *

def packetanalyzer(pkt):
    ip=IP(pkt.get_payload())
    if(ip.src=="192.168.122.1"):
        print(f"New packet from {ip.src}")
        pkt.accept()
    else:
	pkt.drop()

nfqueue=NetfilterQueue()
nfqueue.bind(1, packetanalyzer)
nfqueue.run()

Write your own port knocking script to secure ssh access

DROP all ssh requests and send secret port requests to user-space with NFQUEUE target.

1
2

iptables -t filter -I INPUT -p tcp --dport 22 -j DROP
iptables -t raw -I PREROUTING -p tcp --sport 65534 --dport 65535 -j NFQUEUE --queue-num 1

_This script capture packet from netfilter queue 1 and check SOURCEPORT and SECRETPORT for port knocking and allow source to connect to ssh for EXPIRETIME, default is 30 minutes.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

#!/usr/bin/python3

from os	import system
from netfilterqueue import NetfilterQueue
from scapy.layers.inet import IP
from time import time

SOURCEPORT=65534
SECRETPORT=65535
EXPIRETIME=30
ALLOWED={}

def portknocking(pkt):
    packet=IP(pkt.get_payload())
    currtime=time()
    for item in list(ALLOWED):
        if(currtime-ALLOWED[item] >= EXPIRETIME*60):
            del ALLOWED[item]
    if(packet.sport==SOURCEPORT and packet.dport==SECRETPORT and packet.src not in ALLOWED):
        print(f"Port {packet.dport} knocked by {packet.src}:{packet.sport}")
        system(f"iptables -I INPUT -p tcp --dport 22 -s {packet.src} -j ACCEPT")
        system(f"echo 'iptables -D INPUT -p tcp --dport 22 -s {packet.src} -j ACCEPT' | at now + {EXPIRETIME} minutes")
        ALLOWED[packet.src]=time()
        pkt.drop()

nfqueue=NetfilterQueue()
nfqueue.bind(1, portknocking)

try:
    nfqueue.run()
except KeyboardInterrupt:
    print("\nExit with Keyboard Interrupt")

To knocking port and allow ssh connections from your computer just execute this command:

1

nc -p 65534 SERVER 65535
linux, iptables
iptables
This post is licensed under CC BY 4.0 by the author.
Recent Update
Contents

tar 分卷压缩与解压

使用指定的 SSH key 操作 git
